2009 Honda Pilot Blend Door Actuator Location

Okay, let's talk about something that might not sound glamorous, but trust me, is totally important if you want to avoid turning your 2009 Honda Pilot into a mobile sauna or, conversely, a rolling icebox. We're diving into the mystery of the blend door actuator. Specifically, where the heck is that little critter hiding in your 2009 Pilot?

Now, before you start picturing tiny robotic arms building your Pilot in a secret underground lair (though, let’s be honest, that would be pretty cool), let's break this down. Think of your car's heating and cooling system like your home's thermostat. You set a temperature, and something magical happens to make it that temperature, right? Well, in your car, the blend door is a key part of that magic.

The blend door itself is basically a flap inside your HVAC (Heating, Ventilation, and Air Conditioning) system. It controls how much air flows across the heater core (hot) and the evaporator (cold). Want toasty heat in the winter? The blend door directs more air across the heater core. Craving icy AC in the summer? It diverts air to the evaporator. Simple, right?

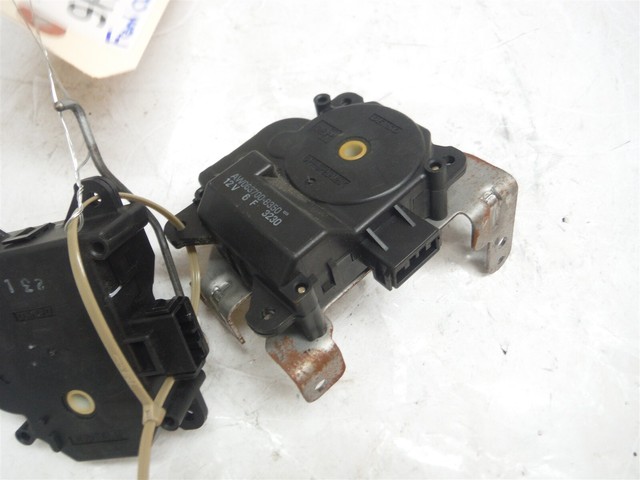

But the blend door doesn't move itself. That's where the blend door actuator comes in. This little motor is the brawn behind the operation. It receives signals from your climate control system and physically moves the blend door to the position that gives you the desired temperature. Think of it as the tiny stagehand who moves the scenery for your personal climate control performance.

Why Should You Care About This Thing?

Imagine you're driving home after a long day. It's a scorching summer afternoon, and you're dreaming of that blast of cool AC. You crank the dial to max cold, but… nothing. Just lukewarm air. Or maybe, you're driving in the dead of winter, your teeth are chattering, and even with the heat cranked up, all you're getting is a faint breeze of slightly-less-freezing air. Sound familiar?

Chances are, your blend door actuator has thrown in the towel. And trust me, a malfunctioning actuator can turn even a short commute into an endurance test. It's like trying to enjoy a movie with the volume stuck on one setting – either deafeningly loud or frustratingly quiet. You can watch it, but you’re not having a good time.

Beyond comfort, a broken actuator can also impact your defroster. Can you imagine trying to navigate a snowy highway with a fogged-up windshield because your defroster is useless? Not fun, and potentially downright dangerous.

So, yeah, this seemingly insignificant part actually plays a pretty big role in your overall driving experience and safety.

Okay, Where Is This Little Guy Hiding in My 2009 Honda Pilot?

Alright, let's get down to the nitty-gritty. Finding the blend door actuator in a 2009 Honda Pilot can be a bit like playing hide-and-seek, but with tools and a car. Here’s a simplified guide to help you in your quest:

Generally, the location is Behind the Dashboard

The blend door actuator is typically located behind the dashboard, somewhere near the center console. Unfortunately, there are often multiple actuators (controlling temperature, mode, and recirculation), and pinpointing the exact one responsible for your temperature woes can require some detective work.

Specific Locations to Check

While there might be minor variations depending on your Pilot’s specific configuration, here are the most likely suspects:

• Driver's Side: Sometimes, the temperature blend door actuator is located on the driver's side of the center console, behind the dashboard. You'll likely need to remove some trim panels to access it.
• Passenger's Side: It can also be found on the passenger's side, similarly behind the dashboard. Again, expect to remove some panels.
• Center Console: In some cases, the actuator is more centrally located, requiring you to partially disassemble the center console area.

Pro Tip: Use a flashlight and a mirror to peek around in tight spaces. This can save you a lot of unnecessary disassembly.

The Importance of Diagnosis Before Disassembly

Before you start tearing apart your dashboard like a kid unwrapping a birthday present, it's a good idea to confirm that the blend door actuator is actually the problem. A mechanic with diagnostic tools can often pinpoint the faulty actuator by reading error codes or using a scan tool to monitor the actuator's operation.

Imagine this: You spend hours taking apart your dashboard, only to discover that the problem was a blown fuse or a faulty climate control module. Talk about frustrating! A little bit of diagnosis can save you a lot of time and heartache.

Things to Keep in Mind During Your Blend Door Actuator Adventure

• Battery Disconnect: Always disconnect the negative battery terminal before working on any electrical components in your car. This prevents accidental shorts and potential damage. Safety first!
• Patience is Key: Working behind the dashboard can be fiddly and time-consuming. Be patient, take your time, and don't force anything.
• Take Pictures: As you remove trim panels and components, take pictures with your phone. This will help you remember how everything goes back together. Trust me, future you will thank you.
• Screws and Fasteners: Keep track of all the screws and fasteners you remove. Use small containers or labeled bags to prevent them from getting lost. There's nothing more annoying than finishing a repair and realizing you have a handful of leftover screws.
• Wiring Harnesses: Be gentle when disconnecting wiring harnesses. Don't pull on the wires themselves. Instead, look for a release tab or clip on the connector.
• Refer to a Repair Manual: A good repair manual specific to your 2009 Honda Pilot will provide detailed instructions and diagrams for locating and replacing the blend door actuator.

When to Call in the Professionals

Let's be real. Some car repairs are best left to the experts. If you're not comfortable working with electrical components, or if you're feeling overwhelmed by the complexity of the task, don't hesitate to take your Pilot to a qualified mechanic.

Think of it this way: You could try to cut your own hair, but the results might not be pretty. Sometimes, it's worth paying a professional to ensure a job is done right.

A mechanic will have the tools, expertise, and experience to quickly diagnose and repair the problem, saving you time, frustration, and potentially costly mistakes.

In Conclusion... Stay Cool (or Warm!)

So, there you have it. A (hopefully) not-too-intimidating overview of the blend door actuator in your 2009 Honda Pilot. Remember, this little component is the unsung hero of your climate control system, working tirelessly to keep you comfortable on the road. By understanding its location and function, you'll be better equipped to troubleshoot any temperature-related issues and keep your Pilot running smoothly (and at the perfect temperature) for years to come.

Now go forth and conquer those rogue temperatures! Just remember to take it slow, stay organized, and don't be afraid to ask for help if you need it. Happy driving!
