2018 Honda Accord Fuel Door Actuator Replacement

If you own a 2018 Honda Accord and find yourself unable to open the fuel door, the fuel door actuator is likely the culprit. Replacing it yourself can save you money and isn't as daunting as it might seem. This guide will walk you through the process.

Tools and Materials You'll Need

Before you begin, gather the following:

• New Fuel Door Actuator (ensure it's compatible with the 2018 Honda Accord)
• Small Flathead Screwdriver
• Phillips Head Screwdriver
• Panel Removal Tool (or a similar tool for prying plastic panels)
• Needle-nose Pliers (optional, but helpful)
• Work Gloves (optional, to protect your hands)
• Flashlight or Work Light

Step-by-Step Replacement Guide

Step 1: Accessing the Actuator

The fuel door actuator is located behind the interior trim panel in the trunk, on the same side as the fuel door (driver's side in North American models). Start by opening your trunk.

Using your panel removal tool, carefully pry away the trunk trim panel. Begin at the edge closest to the rear seats and work your way back. You might encounter plastic clips holding the panel in place. Apply gentle but firm pressure to release them. Avoid yanking on the panel, as this could break the clips.

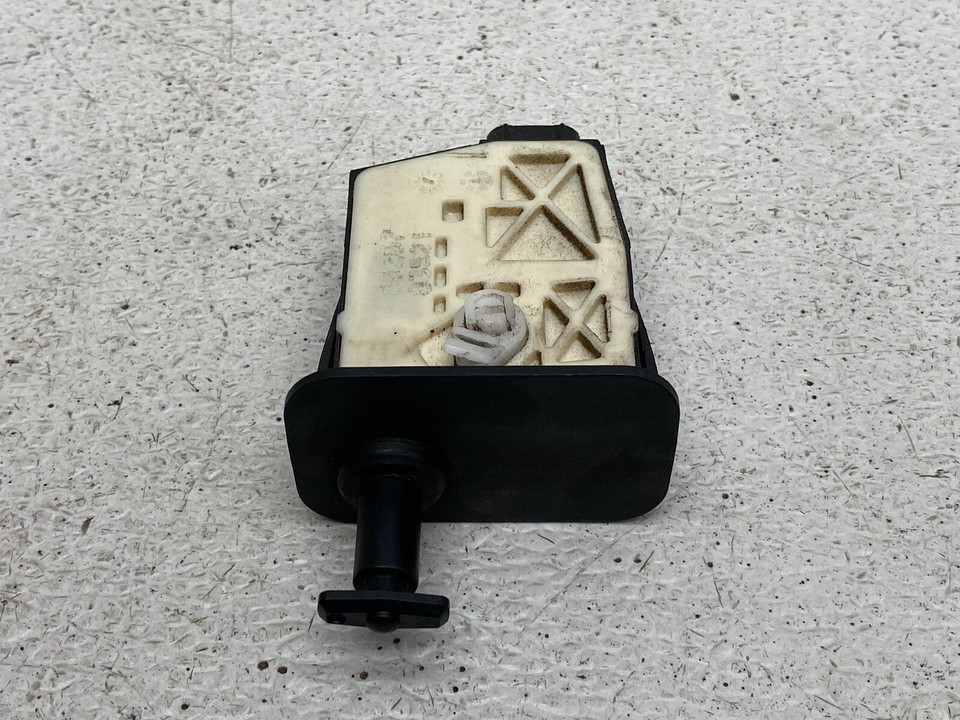

Once you've released enough of the panel to gain access, you should be able to see the fuel door actuator. It's a small, black plastic component connected to the fuel door release cable and an electrical connector.

Step 2: Disconnecting the Electrical Connector

Locate the electrical connector attached to the fuel door actuator. Press down on the release tab on the connector and gently pull it away from the actuator. Be careful not to pull on the wires themselves.

Step 3: Detaching the Release Cable

The release cable connects the actuator to the fuel door. You'll need to detach this cable. The method varies slightly depending on the specific actuator design, but generally, it involves a small clip or lever that needs to be manipulated.

Carefully examine the connection point between the cable and the actuator. You might see a small plastic clip that you can push or pry with a small flathead screwdriver. Alternatively, there might be a lever that you need to rotate or slide. Use your needle-nose pliers if necessary to get a better grip.

Once you've identified the release mechanism, carefully detach the cable. Avoid using excessive force, as you could damage the cable or the actuator.

Step 4: Removing the Old Actuator

The actuator is usually held in place by one or two screws (typically Phillips head). Remove these screws using your Phillips head screwdriver.

Once the screws are removed, you should be able to gently pull the old actuator out of its mounting location.

Step 5: Installing the New Actuator

Place the new actuator into the mounting location, aligning it with the screw holes.

Secure the actuator with the screws you removed earlier. Tighten them snugly, but avoid overtightening.

Step 6: Reattaching the Release Cable

Reconnect the release cable to the new actuator, ensuring it's securely attached. Listen for a click or other indication that the cable is properly engaged.

Important: Double-check that the release cable moves freely and that the fuel door opens and closes correctly before proceeding.

Step 7: Reconnecting the Electrical Connector

Plug the electrical connector back into the new actuator. Make sure it clicks into place, indicating a secure connection.

Step 8: Reinstalling the Trunk Trim Panel

Carefully realign the trunk trim panel and press it back into place. Make sure all the plastic clips are properly engaged.

Step 9: Testing the Fuel Door

Close the trunk and test the fuel door release by pressing the fuel door release button inside the car. The fuel door should open smoothly.

If the fuel door doesn't open, double-check all your connections and ensure the release cable is properly attached and moving freely.

Troubleshooting

Fuel door still won't open:

Ensure the electrical connector is fully seated. Check the fuse related to the fuel door release mechanism. Consult your owner's manual for the fuse location.

Release cable feels loose:

Double-check that the release cable is securely attached to both the actuator and the fuel door release mechanism inside the car (usually located near the driver's seat). The cable may need to be adjusted.

Trim panel won't stay in place:

Inspect the plastic clips on the trim panel. Replace any broken or damaged clips. Ensure all clips are properly aligned with their corresponding holes before pressing the panel into place.

Benefits in Your Daily Life/Work

Knowing how to perform this repair yourself has several benefits:

• Cost Savings: Avoid expensive labor costs at a mechanic shop. The actuator itself is relatively inexpensive.
• Time Savings: Complete the repair at your own pace and convenience, without having to schedule an appointment.
• Increased Confidence: Gain a sense of accomplishment and confidence in your ability to perform basic car maintenance.
• Emergency Preparedness: Be prepared to handle this common issue if it arises again in the future.

This knowledge is particularly useful for:

• Individuals who prefer to perform their own car maintenance.
• People who live in rural areas where access to mechanics might be limited.
• Anyone who wants to save money on car repairs.

Safety Precautions

While this repair is relatively straightforward, it's essential to take certain safety precautions:

• Disconnect the negative terminal of your car battery before starting any electrical work. This will prevent accidental short circuits.
• Wear gloves to protect your hands from sharp edges and dirt.
• Work in a well-lit area.
• Avoid using excessive force when removing or installing parts.
• If you're unsure about any step, consult a qualified mechanic.

Replacement Checklist/Guideline

Before starting, review this checklist:

1. Gather all necessary tools and materials.
2. Locate the fuel door actuator behind the trunk trim panel.
3. Disconnect the electrical connector.
4. Detach the release cable.
5. Remove the old actuator.
6. Install the new actuator.
7. Reattach the release cable.
8. Reconnect the electrical connector.
9. Reinstall the trunk trim panel.
10. Test the fuel door to ensure it opens and closes correctly.

By following these steps, you can successfully replace the fuel door actuator on your 2018 Honda Accord and get back on the road with a fully functional vehicle.
