How To Bypass Thermostat On Rv Air Conditioner

Understanding Thermostat Functionality in RV Air Conditioners

Thermostats in RV air conditioners regulate the cooling cycle by monitoring the internal temperature and signaling the compressor to start or stop. They operate based on a setpoint temperature, which the user defines. When the ambient temperature exceeds the setpoint, the thermostat initiates the cooling process.

Direct Wiring the Compressor

Direct wiring entails bypassing the thermostat and directly connecting the compressor to the power source. This action forces the compressor to run continuously, independent of temperature. Identify the compressor wires, typically found connected to the thermostat or control board.

Disconnect these wires from the thermostat. Securely connect them directly to the power source using appropriately rated connectors. Proper electrical safety precautions are paramount.

Important Safety Note: Direct wiring negates all temperature control and safety mechanisms. Continuous operation can lead to overcooling, energy waste, and potential damage to the air conditioner unit. It is strongly advised to consult a qualified RV technician before proceeding.

Jumper Wire Method on the Thermostat

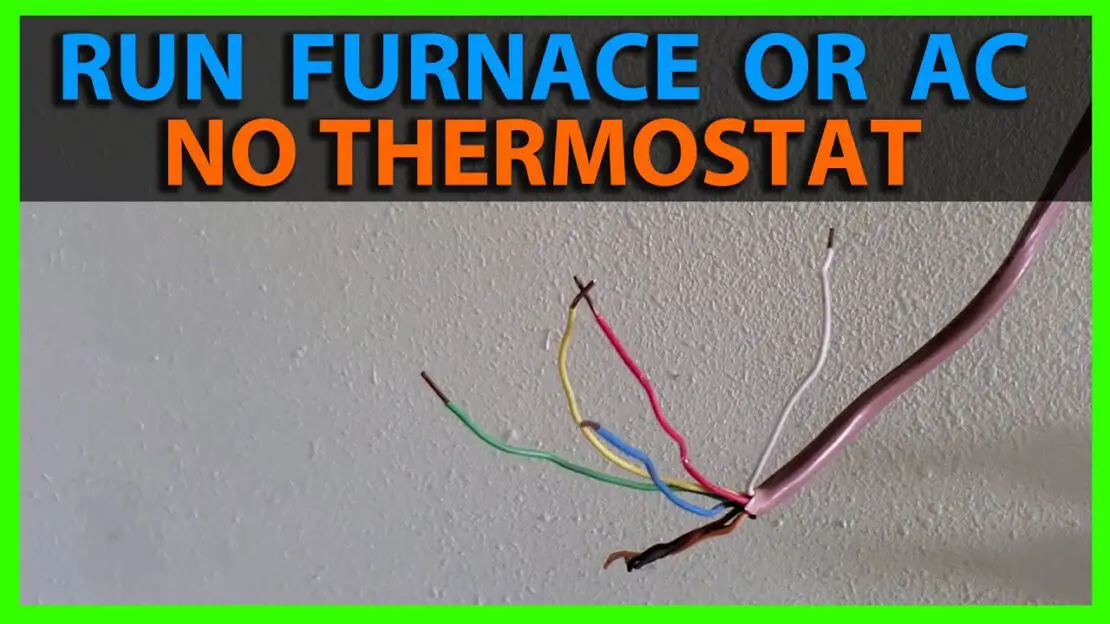

The jumper wire method involves creating a direct electrical connection across the thermostat terminals, effectively bypassing its switching function. Locate the thermostat terminals responsible for controlling the air conditioner's cooling function.

Using a jumper wire of appropriate gauge, connect the designated terminals. This connection creates a closed circuit, signaling the air conditioner to operate continuously. Ensure the jumper wire is securely fastened to the terminals to prevent disconnections.

Be certain to insulate the jumper wire connection to prevent short circuits. Consider using electrical tape or heat shrink tubing for insulation.

Modifying the Control Board

Some RV air conditioners utilize a control board that manages various functions, including thermostat input. Bypassing the thermostat may require modifying the control board’s wiring configuration.

Consult the control board's schematic diagram to identify the specific terminals or components related to the thermostat. These diagrams are often located on the control board itself or in the RV's documentation.

Carefully reroute or bridge the appropriate connections on the control board, effectively bypassing the thermostat's influence. This procedure requires precision and a thorough understanding of the control board's functionality.

Always disconnect the power supply before making any modifications to the control board. Incorrect wiring can cause permanent damage to the control board or the air conditioner unit.

Considerations Before Bypassing

Warranty Implications: Bypassing the thermostat may void the air conditioner’s warranty. Review the warranty terms before proceeding.

Energy Consumption: Bypassing the thermostat results in continuous operation, significantly increasing energy consumption. This can strain the RV's electrical system and drain battery power quickly.

Potential Damage: Continuous operation can lead to overcooling and potential damage to the compressor or other components of the air conditioner. The unit is designed to cycle on and off; constant running exceeds its design parameters.

Safety Risks: Overcooling can also create uncomfortable and potentially hazardous conditions inside the RV, especially for vulnerable individuals. The risk of condensation and mold growth also increases with continuous operation.

Safety Precautions

Disconnect Power: Always disconnect the power supply to the RV before working on any electrical components, including the air conditioner and thermostat.

Use Appropriate Tools: Employ insulated tools designed for electrical work to minimize the risk of electric shock.

Consult a Professional: If you are unfamiliar with electrical wiring or air conditioner systems, seek assistance from a qualified RV technician.

Double-Check Connections: Before restoring power, carefully inspect all wiring connections to ensure they are secure and properly insulated.

Alternative Solutions

Before resorting to bypassing the thermostat, consider alternative solutions to address the underlying issue. These solutions may be safer and more sustainable.

Thermostat Replacement: If the thermostat is faulty, replacing it with a new unit is a straightforward solution. Ensure the replacement thermostat is compatible with the air conditioner model.

Wiring Inspection: Inspect the wiring connections to the thermostat for any loose or corroded connections. Clean and tighten the connections as needed.

Control Board Diagnosis: If the control board is suspected to be the cause of the problem, have it diagnosed by a qualified technician. Replacing the control board may resolve the issue.

Troubleshooting Common Issues

Air Conditioner Not Cooling: If the air conditioner is not cooling, check the refrigerant level, condenser coils, and fan motor before attempting to bypass the thermostat.

Thermostat Display Problems: If the thermostat display is not working, check the power supply to the thermostat and the wiring connections. Replace the thermostat if necessary.

Erratic Temperature Readings: Erratic temperature readings may indicate a faulty thermostat sensor. Replace the thermostat to resolve this issue.

Advanced Considerations

In some cases, more advanced approaches may be considered, but these should only be undertaken by experienced technicians with specialized knowledge.

Custom Control Circuits: Designing and implementing a custom control circuit can provide more granular control over the air conditioner’s operation. This requires a strong understanding of electronics and control systems.

Smart Home Integration: Integrating the air conditioner with a smart home system allows for remote control and automated temperature adjustments. This requires compatible hardware and software.

Variable Speed Control: Modifying the air conditioner to operate at variable speeds can improve energy efficiency and temperature control. This requires specialized components and expertise.

Concluding Remarks

Bypassing the thermostat on an RV air conditioner is a potentially risky procedure that should only be considered after careful evaluation of the potential consequences. It is crucial to prioritize safety and consult with a qualified technician before proceeding. Understanding the underlying issues and exploring alternative solutions is always recommended.

Key Takeaways:

• Directly wiring the compressor or using jumper wires can force continuous operation, bypassing thermostat control.
• Modifying the control board requires careful planning and understanding of the system's electrical schematics.
• Bypassing thermostats can void warranties and lead to increased energy consumption and potential damage to the unit.
• Safety precautions are paramount when working with electrical components. Disconnect power and use insulated tools.
• Consider alternative solutions like thermostat replacement or wiring inspection before attempting to bypass the thermostat.
