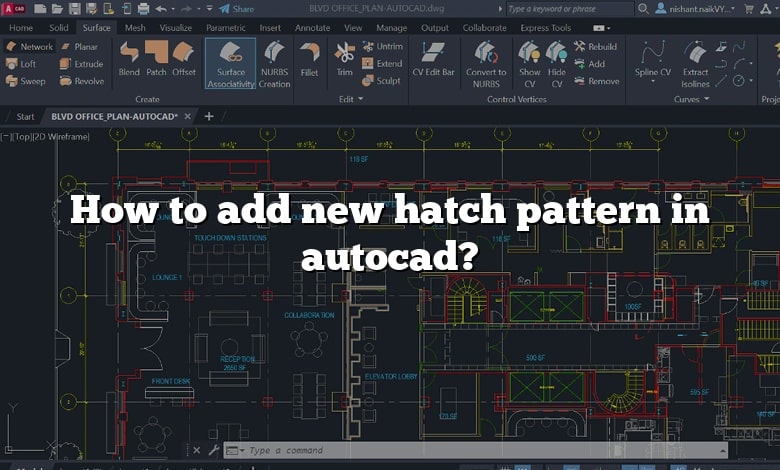

How To Import Hatch Pattern In Autocad

Okay, picture this: you're baking a cake. You've got your batter perfect, it's rising beautifully in the oven, but now you want to make it *extra* special. You're thinking intricate icing designs, maybe some edible glitter – the works! That's kind of what adding a custom hatch pattern to your AutoCAD drawing is like. It takes a regular drawing and gives it that special something, that personalized flair that makes it pop.

Now, maybe you’re thinking, "Hatch patterns? Sounds complicated!" But trust me, it's not. Think of it like downloading a custom font for your computer – once you know how, it's super easy and opens up a whole new world of possibilities.

Why Bother with Custom Hatch Patterns?

Good question! AutoCAD comes with a bunch of standard hatch patterns, like the brick pattern for walls or the gravel pattern for… well, gravel! But sometimes, you need something *specific*. Maybe you're drawing a wooden deck and want a very particular wood grain. Or perhaps you're designing a quilt pattern and need a unique stitch effect. Standard hatches just won't cut it. That's where importing custom hatch patterns comes to the rescue! It's like having an infinite toolbox of textures and designs right at your fingertips.

Plus, using custom hatches can make your drawings much clearer and more professional. Imagine trying to explain a complicated paving pattern with just lines and circles. A custom hatch can show it instantly and accurately.

Getting Your Hands on Hatch Patterns

So, where do you find these magical hatch patterns? The internet, of course! There are tons of websites offering free or paid hatch patterns. Just do a quick search for "AutoCAD hatch patterns" and you'll be swimming in options. Be sure to choose patterns in the ***.pat*** format. That's the file type AutoCAD understands.

Think of it like finding that perfect recipe online. You might have to sift through a few duds, but when you find the right one, it's a game-changer!

The Super-Simple Steps to Importing

Alright, let's get down to the nitty-gritty. Here’s how you import that awesome hatch pattern into AutoCAD, broken down into easy-to-digest steps:

Find the Support File Search Path: First, you need to tell AutoCAD where to look for your custom hatches. Type OPTIONS in the command line and press Enter. This opens the Options dialog box.
Navigate to the "Files" Tab: In the Options dialog box, click on the "Files" tab. This is where AutoCAD keeps track of all the important file locations.
Expand "Support File Search Path": Scroll down in the "Files" tab until you see "Support File Search Path" and click on the plus sign (+) to expand it.
Add a New Path: Now, click "Add..." on the right. This will create a new blank line. Click "Browse..." and navigate to the folder where you've saved your ***.pat*** file(s). Select the folder and click "OK". This tells AutoCAD to look in that folder for hatch patterns.
Apply and OK: Click "Apply" and then "OK" to close the Options dialog box. This saves your changes.

Important: It’s often best to create a dedicated folder (like "Custom Hatches") specifically for your imported patterns. This keeps everything organized and makes it easier to manage in the long run. Think of it as organizing your spice rack – everything in its place!

Using Your New Hatch Pattern

Okay, you've added the path. Now what? Let's use that pattern!

Start the Hatch Command: Type HATCH in the command line and press Enter. This activates the hatch command.
Open the Hatch Palette: The Hatch Creation tab will appear. Find the "Pattern" panel.
Choose "User Defined": In the "Pattern" panel, click on the dropdown menu. If your pattern is not displaying in the list, select "User defined." This will force AutoCAD to search the designated folder for custom hatches.
Select the Pattern: Once you selected "User defined", use the three dots button (...) beside the "Pattern" select box and select your pattern.
Define the Area: Now, tell AutoCAD *where* you want to apply the hatch. You can either "Pick points" (click inside the area you want to hatch) or "Select" (click on the objects that define the area).
Adjust the Scale: The hatch pattern might be too big or too small. Use the "Scale" setting in the Hatch Creation tab to adjust the pattern's size until it looks just right. Think of it like zooming in or out on a photograph.
Preview and Accept: AutoCAD will show you a preview of the hatch. If you're happy with it, press Enter to accept. If not, tweak the settings until it's perfect.

And that's it! You've successfully imported and applied a custom hatch pattern. Give yourself a pat on the back (and maybe bake yourself that celebratory cake!).

Troubleshooting Tips

Sometimes, things don't go exactly as planned. Here are a few common issues and how to fix them:

Pattern Not Showing Up: Double-check that you've added the correct path to the "Support File Search Path" in the Options dialog box. Also, make sure the ***.pat*** file is actually in that folder. Also make sure to select "User defined."
Pattern Too Big or Too Small: Adjust the "Scale" setting in the Hatch Creation tab. Experiment with different values until the pattern looks right.
Hatch Not Filling the Area: Make sure the area you're trying to hatch is completely enclosed. AutoCAD needs a closed boundary to apply the hatch.

Importing hatch patterns might seem a little daunting at first, but with a little practice, it'll become second nature. Soon, you'll be adding custom hatches to all your drawings, making them more detailed, more informative, and a whole lot more impressive. Happy hatching!
