Creating a makeshift television antenna using aluminum foil can offer a temporary solution for improving signal reception, particularly in areas with weak signal strength. This method leverages the conductive properties of aluminum to capture broadcast signals. While not a substitute for a professionally designed antenna, it can provide a functional, low-cost alternative.

Materials Required

To construct a basic aluminum foil antenna, you will need the following items:

Aluminum foil: Standard kitchen foil is suitable.
Cardboard or a similar rigid material: This serves as a base for the antenna.
Wire or coaxial cable: For connecting the foil elements to the television.
Tape: Electrical tape or duct tape for securing the components.
Scissors or a utility knife: To cut the aluminum foil and cardboard.
Ruler or measuring tape: Ensures accurate dimensions.

Construction Process

The construction process involves creating foil elements, attaching them to a base, and connecting them to your television.

Must Read

Step 1: Preparing the Base

Begin by cutting the cardboard into a rectangular shape. The exact dimensions aren't critical, but a size of approximately 12 inches by 18 inches provides a stable base. Ensure the cardboard is clean and dry.

Step 2: Cutting and Shaping the Aluminum Foil Elements

Cut two pieces of aluminum foil into rectangular shapes. The size of these rectangles influences the antenna's performance; a size of 6 inches by 8 inches is a good starting point. Fold each rectangle lengthwise to create a thicker, more rigid foil element. Ensure the folds are neat and even.

Step 3: Attaching the Foil Elements to the Base

Position the two foil elements on the cardboard base. Place them parallel to each other, leaving a gap of approximately 2 to 3 inches between them. Use tape to securely attach the foil elements to the cardboard. Ensure the tape does not cover a significant portion of the foil surface, as this can impede signal reception.

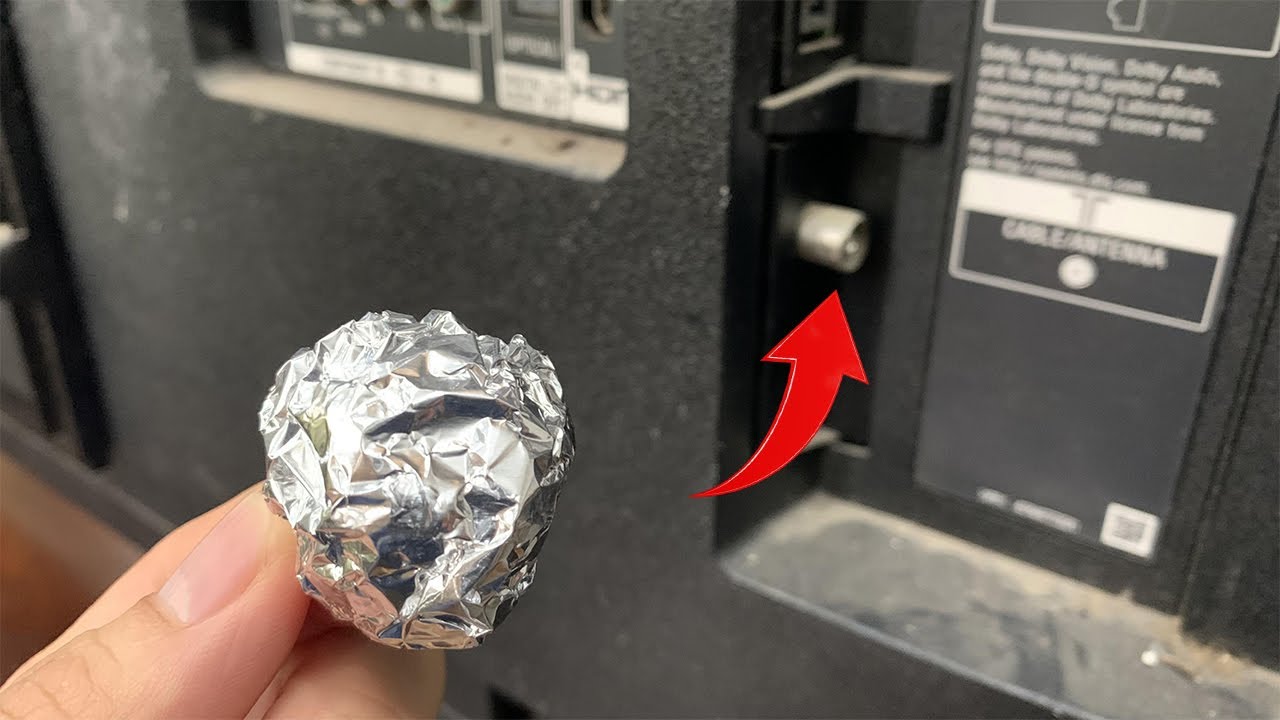

Insert the Foil into your TV and watch 100+ channels thanks to this

Step 4: Connecting the Wire or Coaxial Cable

Strip the ends of the wire or coaxial cable to expose the conductive core. Carefully attach one end of the wire to one of the foil elements, and the other end to the second foil element. Secure the connections with tape, ensuring good contact between the wire and the foil. For coaxial cable, split the cable end and connect the inner conductor to one foil element and the outer shielding to the other.

Step 5: Connecting to the Television

Connect the other end of the wire or coaxial cable to the antenna input on your television. Ensure the connection is secure. If using a balun transformer (typically used to match impedance between a coaxial cable and antenna terminals), connect the foil antenna to the balun and then connect the balun to the TV.

Optimizing Signal Reception

Once the antenna is constructed, optimizing its position and orientation is crucial for achieving the best possible signal reception.

Positioning the Antenna

Experiment with different locations for the antenna. A higher location, such as near a window or on top of a cabinet, often provides better signal reception. Keep the antenna away from large metal objects, which can interfere with the signal.

Insert Aluminum Foil into the TV and Unlock all the Channels in the

Adjusting the Orientation

Rotate the antenna to different angles to find the optimal orientation for receiving signals from local broadcast towers. A slight adjustment in angle can sometimes make a significant difference in signal strength. Rescan the channels on your television after each adjustment to determine if the signal has improved.

Troubleshooting

If you are not receiving a signal, or if the signal is weak, try the following troubleshooting steps:

Double-check all connections to ensure they are secure.
Verify that the aluminum foil elements are properly attached to the cardboard base.
Ensure the wire or coaxial cable is securely connected to both the foil elements and the television.
Try using a longer wire or coaxial cable to improve signal reach.
Rescan the channels on your television to ensure it is properly tuned to available broadcasts.
Consult online resources or local broadcast information to determine the optimal antenna orientation for your location.

Limitations

An aluminum foil antenna has limitations compared to commercially manufactured antennas:

Signal strength: The reception capabilities of an aluminum foil antenna are generally weaker than those of professionally designed antennas.
Durability: The antenna is fragile and can easily be damaged.
Weather resistance: The antenna is not designed for outdoor use and will be affected by weather conditions.
Signal interference: Susceptible to interference from electrical devices and other sources.

Despite these limitations, a homemade aluminum foil antenna can provide a temporary or emergency solution for receiving television signals in situations where a conventional antenna is not available.

🔥 Insert Aluminum Foil into the TV and Watch all the Channels of the

Important Considerations

While constructing and using an aluminum foil antenna is a straightforward process, it's important to consider safety and responsible disposal.

Safety: Ensure that all electrical connections are made securely and that the antenna is positioned away from potential hazards, such as water or flammable materials.

Disposal: When discarding the antenna, separate the aluminum foil from the cardboard and recycle the materials properly.

Alternative Designs

Beyond the basic design described above, several variations can be explored to potentially enhance signal reception:

How To Make A TV Antenna With Aluminum Foil (DIY Guide)

Bowtie Antenna Variation

This involves shaping the aluminum foil into a bowtie configuration, which is known for its directional signal reception. Cut two pieces of foil into bowtie shapes, attach them to the cardboard base with a small gap between them, and connect the wire or coaxial cable as before.

Reflector Enhancement

Adding a metal reflector behind the antenna can improve signal strength. Use a larger piece of cardboard or metal sheet to create a reflector, positioning it a few inches behind the foil elements. This can help to focus the signal towards the antenna.

Multiple Elements

Increasing the number of foil elements may also boost reception. Create several foil rectangles and arrange them in a parallel array on the cardboard base, ensuring consistent spacing between the elements. Connect all the elements to the wire or coaxial cable.

Conclusion

Constructing a TV antenna with aluminum foil offers a readily available and economical way to access over-the-air broadcast signals. While not a replacement for a dedicated antenna system, it can serve as a practical and educational experiment. Its simplicity highlights the fundamental principles of antenna design and signal reception, offering a tangible understanding of how electromagnetic waves are captured and converted into viewable television signals. The ability to improvise such a device demonstrates the ingenuity and resourcefulness that can be applied to basic technology challenges. This knowledge can be especially valuable in situations where traditional antenna solutions are unavailable or impractical, emphasizing the importance of understanding basic electronics principles.
