How To Remove And Clean Harley Fuel Injectors

Alright, folks, ever wondered what makes your Harley roar to life with that unmistakable rumble? Sure, there's the engine, the exhaust, but let's dive into something a little more... refined. We're talking fuel injectors. Those little nozzles are like the unsung heroes of your ride, spraying the perfect amount of fuel for maximum power and efficiency. But just like any crucial component, they can get clogged and grumpy over time. So, how do you keep them purring? Let's talk about removing and cleaning those Harley fuel injectors – it's easier than you might think!

Why Bother Cleaning Fuel Injectors?

Why bother, you ask? Well, imagine your garden hose is slowly getting clogged with sediment. The water pressure drops, your plants aren't getting the water they need, and everything just kind of...suffers. It's the same deal with your fuel injectors. A dirty injector can lead to a whole host of problems:

• Reduced Fuel Efficiency: Your bike starts guzzling gas like it's going out of style. Nobody wants that!
• Rough Idling: That smooth Harley idle turns into a shaky, sputtering mess. Not cool.
• Poor Performance: Hesitation, stalling, a general lack of oomph – all signs of a fuel injector struggling to do its job.
• Increased Emissions: You're polluting more than you need to be. Let's keep our planet (and our riding reputation) clean.

Think of it like this: clean fuel injectors are like a happy, well-fed beast. Dirty ones? Well, they're grumpy and underperforming. Who wants to ride a grumpy beast?

Tools of the Trade: What You'll Need

Before we get our hands dirty, let's gather our supplies. Think of this as your Harley surgeon's toolkit (minus the operating table... hopefully!). Here's a basic list:

• Basic Hand Tools: Wrenches, sockets, screwdrivers – the usual suspects. A Harley service manual for your specific model is highly recommended.
• Fuel Line Disconnect Tool: This little gadget helps you safely disconnect the fuel lines without making a mess. Trust me, you'll appreciate this.
• Fuel Injector Cleaner: You can find specialized injector cleaner at most auto parts stores. Make sure it's compatible with your bike's fuel system.
• Soft Cloths or Rags: For wiping up spills and keeping things clean.
• Safety Glasses: Protect those peepers!
• Gloves: To keep your hands clean and protected from fuel.
• Compressed Air (Optional): Can be helpful for drying and clearing out injectors.
• Fuel Injector Cleaning Kit (Optional): These kits usually include adapters and a power source for a more thorough cleaning. We'll talk more about these later.

Remember, safety first! Always disconnect the battery before working on your fuel system. And work in a well-ventilated area – gasoline fumes are no joke.

Step-by-Step: Removing Your Harley Fuel Injectors

Okay, time to get our hands dirty! This is where that Harley service manual really comes in handy, as procedures can vary slightly depending on your model. But here's a general overview:

1. Disconnect the Battery: Seriously, do this. Negative terminal first. Safety first, remember?
2. Locate Your Fuel Injectors: They're usually located on the intake manifold, where the air enters the engine. Refer to your service manual if you're unsure.
3. Relieve Fuel Pressure: There's a schrader valve (like the one on your tires) on the fuel rail. Carefully depress the valve to relieve the fuel pressure. Have a rag handy to catch any fuel that squirts out.
4. Disconnect the Fuel Lines: Use your fuel line disconnect tool to carefully detach the fuel lines from the fuel rail. Be prepared for a little bit of fuel spillage.
5. Disconnect the Electrical Connectors: Unplug the electrical connectors from the fuel injectors.
6. Remove the Fuel Rail: The fuel rail is the bar that holds the fuel injectors in place. It's usually held on by a few bolts. Remove the bolts and carefully lift off the fuel rail.

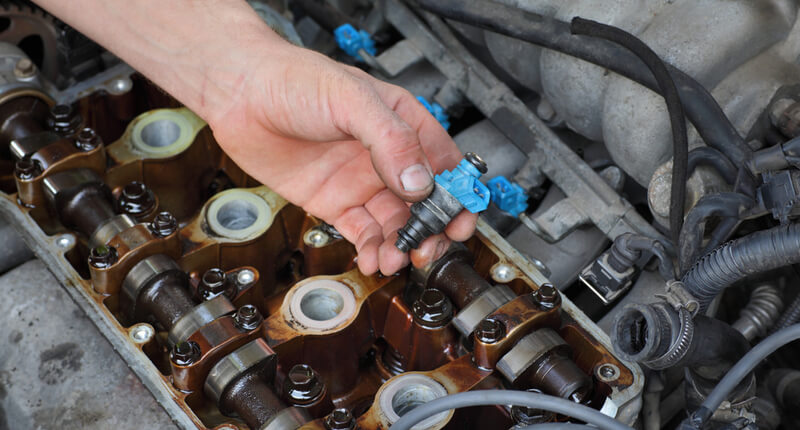

7. Remove the Fuel Injectors: The injectors are usually held in place by O-rings. Gently wiggle and pull the injectors out of the fuel rail. Be careful not to damage the O-rings.

Once you've removed the injectors, inspect them for any obvious signs of damage or wear. Are the O-rings cracked or brittle? Are there any visible deposits on the injector nozzles?

Cleaning Time: Bringing Your Injectors Back to Life

Now for the fun part! There are a few ways to clean your fuel injectors. Here are two common methods:

Method 1: The Spray-and-Soak

This is the simplest method and works well for lightly clogged injectors.

1. Spray: Spray the fuel injector cleaner directly onto the injector nozzles and into the fuel inlet.
2. Soak: Let the injectors soak in the cleaner for at least 30 minutes.
3. Spray Again: After soaking, spray the injectors again to flush out any remaining debris.
4. Dry: Allow the injectors to air dry completely or use compressed air to speed up the process.

Method 2: The Fuel Injector Cleaning Kit

For heavily clogged injectors, a fuel injector cleaning kit is your best bet. These kits provide a more controlled and thorough cleaning process.

These kits typically include:

• A Canister: To hold the cleaning solution.
• Adapters: To connect the canister to the fuel injector.
• A Power Source: Usually a 9-volt battery or a 12-volt power supply.
• Cleaning Solution: Specially formulated to dissolve fuel deposits.

The process usually involves:

1. Connecting the Injector: Attach the injector to the cleaning kit using the appropriate adapters.
2. Applying Power: Connect the power source to activate the injector. This opens and closes the injector valve, allowing the cleaning solution to flow through.
3. Cleaning Cycle: Run the cleaning cycle for the recommended time.
4. Repeat if Necessary: If the injector is heavily clogged, you may need to repeat the cleaning cycle.

No matter which method you choose, make sure to wear safety glasses and gloves and work in a well-ventilated area. And always follow the instructions provided with your cleaning solution or kit.

Reassembly: Putting It All Back Together

Once your injectors are clean and dry, it's time to put everything back together. This is essentially the reverse of the removal process.

1. Replace the O-Rings: This is crucial. Old O-rings can leak, causing fuel pressure problems and other issues. Use new O-rings that are compatible with your bike's fuel system.
2. Install the Injectors: Carefully insert the injectors into the fuel rail. Make sure they're seated properly.
3. Install the Fuel Rail: Align the fuel rail with the intake manifold and tighten the mounting bolts.
4. Connect the Electrical Connectors: Plug the electrical connectors back into the fuel injectors.
5. Connect the Fuel Lines: Reattach the fuel lines to the fuel rail using your fuel line disconnect tool.
6. Connect the Battery: Reconnect the battery (positive terminal first).

Before you start your engine, double-check all your connections to make sure everything is secure. Then, turn the ignition on (but don't start the engine) and listen for the fuel pump to prime. Check for any fuel leaks. If everything looks good, start your engine and let it idle for a few minutes. Listen for any unusual noises or rough idling.

Final Thoughts: Enjoy the Ride!

Cleaning your Harley fuel injectors might seem intimidating at first, but it's a manageable task with the right tools and a little patience. And the benefits – improved fuel efficiency, smoother performance, and a happier engine – are well worth the effort.

So, next time your Harley starts acting a little sluggish, don't immediately assume the worst. Give those fuel injectors a little TLC. You might be surprised at the difference it makes. Now get out there and enjoy the ride!
