How To Test Evaporator Fan Motor With Multimeter

Alright, gather 'round, folks! Let’s talk about the unsung hero of your refrigerator: the evaporator fan motor. You probably haven't given it much thought, right? It’s tucked away, quietly doing its thing, keeping your ice cream from melting into a sad, soupy mess. But when it goes kaput? Oh boy, then you'll notice. Your fridge turns into a lukewarm wasteland where lettuce wilts faster than a politician's promise.

So, how do we diagnose this fridge-saving champion? With a multimeter, of course! Don’t worry, it sounds more intimidating than it is. Think of it as a doctor’s stethoscope for appliances. Except instead of listening for heartbeats, we're looking for electrical continuity. And hopefully, we won't need to perform any appliance CPR (though, wouldn't that be a sight?).

The Patient: Your Evaporator Fan Motor

Before we get down to the nitty-gritty, let's understand what this little dynamo actually does. The evaporator fan motor lives near the evaporator coils (hence the name!), which are responsible for cooling the air inside your fridge. The fan's job is to circulate that cold air evenly throughout the fridge and freezer. Without it, you get hot spots, warm spots, and a whole lot of frustration when your milk is room temperature while your frozen peas are rock solid.

Fun Fact: Did you know that some refrigerators have more than one evaporator fan motor? It’s true! Fancy refrigerators are like complicated romantic relationships; they require more attention and maintenance.

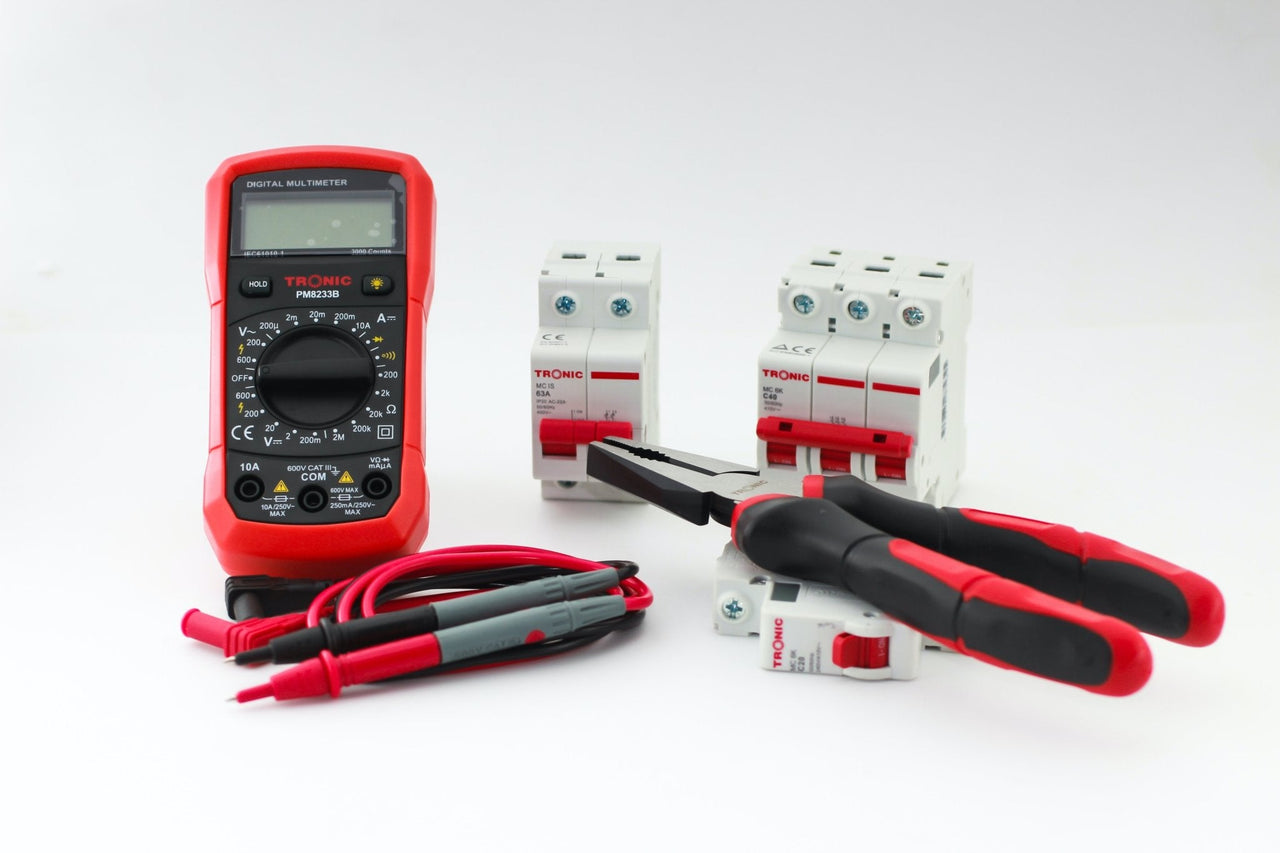

The Tools of the Trade: What You'll Need

Okay, aspiring appliance whisperers, gather your supplies! Here’s what you’ll need to perform this electrical examination:

• A Multimeter: This is our star player. Make sure it's set to test resistance (Ohms – symbolized by the Ω symbol). If your multimeter has an auto-ranging feature, even better! Less fiddling around.
• A Screwdriver: Because, let’s face it, things are always screwed together. Hopefully, you won't strip any screws. We've all been there.
• A Pair of Pliers (optional): For gently persuading stubborn wires to cooperate. Remember, we're doctors, not gorillas.
• Your Refrigerator's Service Manual (highly recommended): This is the cheat sheet. It will tell you exactly where to find the evaporator fan motor and how to access it in your specific fridge model. Think of it as the fridge's biography.
• Safety Glasses: Because safety first! We don't want any electrical surprises ending up in your eyeballs.
• Gloves (optional): For avoiding touching potentially dirty or oily components. Plus, you'll look like a professional!

The Procedure: Let's Get Electrified (Safely!)

WARNING: Before you even THINK about touching anything electrical, unplug your refrigerator! I cannot stress this enough. We're testing for dead circuits, not becoming one. Electricity is not your friend, treat it with the respect it deserves.

Step 1: Locate the Evaporator Fan Motor

This is where that service manual comes in handy. Generally, the evaporator fan motor is located inside the freezer compartment, near the back wall. You might need to remove some panels or shelves to get to it. This can feel like an archeological dig, so brush off your inner Indiana Jones.

Step 2: Access the Motor's Terminals

Once you've located the motor, you'll need to access its electrical terminals. These are usually small metal prongs where the wires connect. They might be hidden behind a plastic cover or tucked away in a connector. Refer to your service manual for specific instructions.

Step 3: Disconnect the Wires (Carefully!)

Important: Before disconnecting any wires, take a picture! This will save you a world of headache when it's time to put everything back together. Trust me, future you will thank you. Carefully disconnect the wires from the motor's terminals. You might need to use pliers for this, but be gentle!

Step 4: Set Up Your Multimeter

Turn on your multimeter and set it to the resistance (Ohms - Ω) setting. If your multimeter has different resistance ranges, start with the lowest range and increase it if needed. If it's an auto-ranging multimeter, just turn it on and let it do its thing.

Step 5: Perform the Resistance Test

Now, the moment of truth! Touch one of the multimeter's probes to one of the motor's terminals, and the other probe to another terminal. Watch the multimeter's display. What does it say?

• If the multimeter shows a reading (something other than OL or infinity): Congratulations! The motor has continuity, which means electricity can flow through it. This suggests the motor is likely functional, but it doesn't guarantee it's working perfectly. It may still have worn bearings or other mechanical issues. We will dig into this later.
• If the multimeter shows OL, infinity, or some other indication of no reading: Uh oh. This means the motor has no continuity. The circuit is broken, and the motor is likely dead. It's time for a new evaporator fan motor. Pour one out for our fallen comrade.

Step 6: Another Test: Check for Shorts to the Motor Housing

This test checks if the motor is shorted to the metal casing, indicating a potentially dangerous situation.

• Touch one probe to one of the motor terminals, and the other probe to the metal housing of the motor.
• Repeat for each motor terminal.
• If you get a reading: The motor is shorted and should not be used. This is bad. Replace the motor immediately.
• If you get no reading (OL, infinity): This is good. The motor is not shorted.

Step 7: Mechanical Check (Because Electricity Isn't Everything)

Even if the motor passes the electrical tests, it's still a good idea to check it mechanically.

• Try to spin the fan blade by hand. Does it spin freely? Or does it feel stiff or gritty?
• If the fan blade is difficult to turn, or makes strange noises, the motor's bearings may be worn out.
• Even if the motor technically works, a worn-out motor might not spin fast enough to properly circulate the air, leading to those dreaded temperature imbalances in your fridge.

The Verdict: Is Your Evaporator Fan Motor Guilty or Not Guilty?

Based on your multimeter readings and mechanical checks, you can now determine the fate of your evaporator fan motor:

• Motor has no continuity (OL reading): Guilty! Time for a replacement.
• Motor has continuity but spins poorly: Potentially Guilty! Even though it has continuity, the bearings are probably worn. It’s advisable to replace.
• Motor has continuity, spins freely, and doesn't sound like a dying walrus: Not Guilty! The motor is likely fine. Look for other potential problems, like a faulty control board or a blocked vent.

Replacement Time: A New Hope

If your evaporator fan motor is indeed deceased, don't despair! Replacing it is usually a straightforward process. You can find replacement motors online or at appliance parts stores. Make sure you get the correct model for your refrigerator.

Pro Tip: When installing the new motor, pay close attention to the wiring diagram (that picture you took earlier!). Connect the wires exactly as they were before. If you're unsure, consult a qualified appliance repair technician.

Conclusion: You're Now a Fridge Whisperer!

And there you have it! You've successfully diagnosed your refrigerator's evaporator fan motor using a multimeter. You've bravely faced the world of electrical resistance, continuity, and potentially faulty appliances. You are now a certified (self-certified, anyway) fridge whisperer! Go forth and keep those frozen peas frozen and the milk cold. The world (or at least your grocery bill) will thank you.

Just remember, always prioritize safety when working with electricity. And if you're ever unsure about anything, don't hesitate to call a professional. Sometimes, it's better to leave the appliance CPR to the experts.
