How To Test Refrigerator Evaporator Fan Motor With Multimeter

Ever stood in front of your fridge, wondering why it's suddenly warmer than a lukewarm cup of coffee? You've got that sinking feeling, haven't you? It's like realizing you forgot to pay the internet bill – a total buzzkill.

One potential culprit? The evaporator fan motor. Think of it as the tiny little wind god inside your fridge, circulating the cold air and keeping your produce from staging a revolt. When it kicks the bucket, things get…well, unfresh.

But before you start panicking and mentally calculate how much that new fridge is going to set you back, grab your multimeter! Yep, that dusty thing in the garage. We're going to play detective and see if this little motor is truly the bad guy.

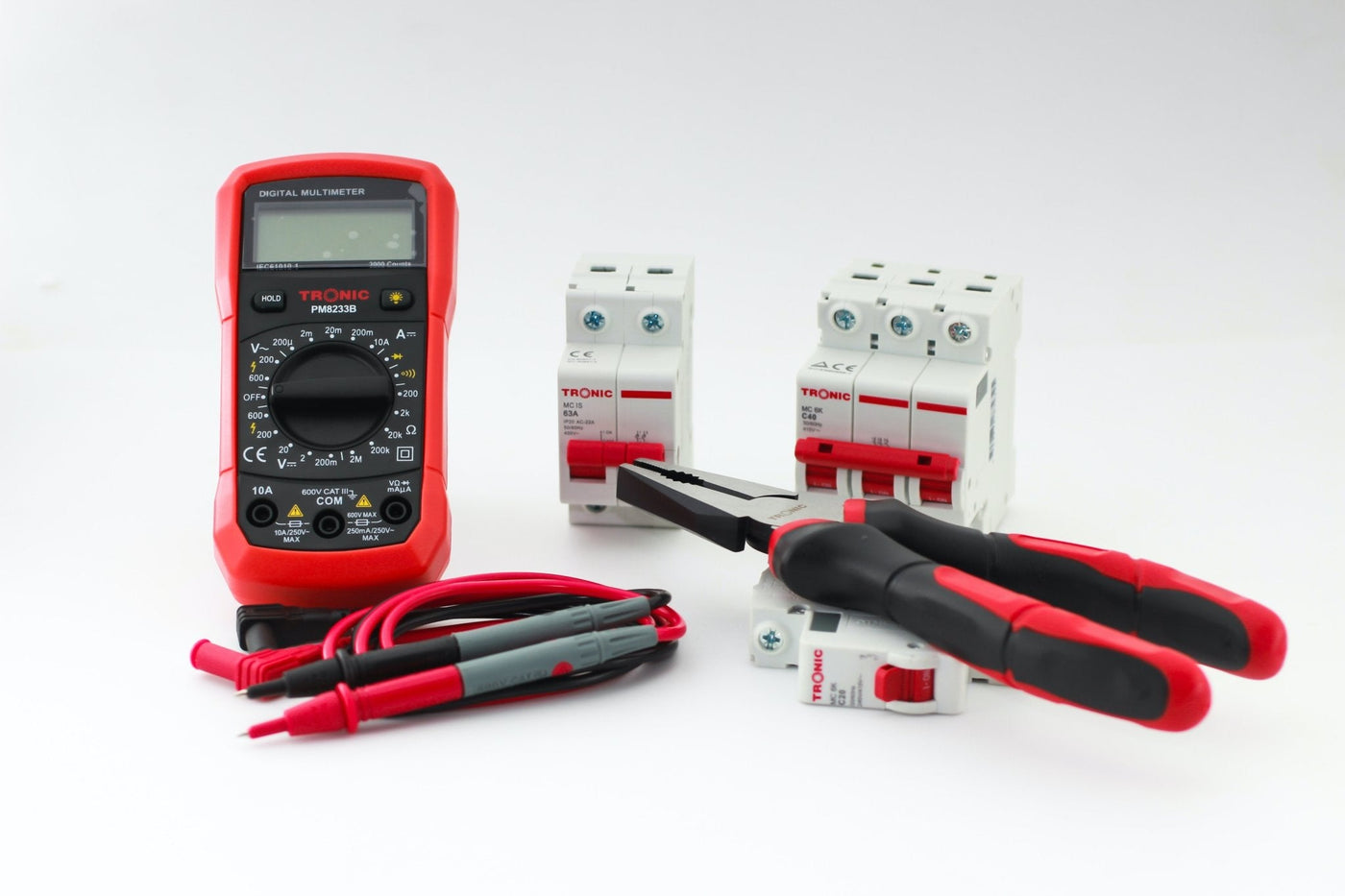

What You'll Need: Operation Save-the-Fridge

Gather your tools, brave appliance warrior!

• A multimeter (the hero of our story!)
• A screwdriver (Phillips or flathead, depending on your fridge's evil design)
• Possibly some pliers (just in case things get a little…stubborn)
• Safety glasses (because looking cool and being safe is always a win)

Finding Nemo… I mean, the Evaporator Fan Motor

First things first: unplug the fridge! Seriously. Electricity and amateur appliance repair don't mix any better than pineapple on pizza. (Controversial, I know, but stick with me.)

The evaporator fan motor usually chills behind a panel in the freezer compartment. You might need to remove some shelves or drawers to get to it. It's like a treasure hunt, except the prize is a working fridge (and maybe some leftover pizza).

Once you've located the motor, disconnect the wires. Take a picture before you do! Trust me. Future-you will thank you when you're trying to remember which wire goes where. It's like remembering your Wi-Fi password – write it down!

Multimeter Magic: Testing for Resistance

Now for the main event! Turn on your multimeter and set it to measure resistance (usually marked with an Omega symbol - Ω). Think of resistance as how much the motor "pushes back" against the flow of electricity. A healthy motor will have some resistance, but a dead one will have either infinite resistance (an open circuit) or zero resistance (a short circuit).

Touch the multimeter probes to the motor's terminals. If you get a reading between, say, 20 to 200 ohms (check your fridge's repair manual for the specific range), that's a good sign! The motor might be okay. But if the multimeter displays "OL" (overload) or some other indication of infinite resistance, or reads zero, Houston, we have a problem.

Important Note: A resistance test doesn't guarantee the motor is 100% functional, but it's a good first step. The motor could still be mechanically seized or have other internal issues.

Beyond Resistance: Checking for Voltage (Advanced!)

Okay, this is where things get a little more complicated, but stick with me! If the resistance test looks good, you can try testing for voltage at the motor while the fridge is running. (Again, use extreme caution! Electricity is dangerous!)

Set your multimeter to measure AC voltage. Carefully plug the fridge back in and turn it on. Locate the wires that supply power to the evaporator fan motor and, using your multimeter probes, check for voltage. If you're getting the correct voltage (usually 120V AC), then the problem isn't the wiring. The motor itself is likely the culprit.

So, What Does It All Mean?

If your resistance test showed infinite or zero resistance, or if you're getting the correct voltage but the motor still isn't spinning, it's likely time for a new evaporator fan motor. Ordering one online is usually much cheaper than calling a repair technician. Think of all the pizza money you'll save!

However, if you're feeling even slightly unsure about any of these steps, please call a professional. It's better to be safe (and fridge-full) than sorry (and eating take-out for a week).

And remember, even if the fan motor isn't the issue, at least you've learned a cool new skill. Plus, you can impress your friends at the next barbecue with your newfound fridge-fixing prowess.
