Whirlpool Cabrio Dryer Heating Element Replacement: A Practical Guide

This article provides a structured approach to replacing the heating element in a Whirlpool Cabrio dryer. It focuses on delivering factual information and procedural steps for qualified individuals undertaking this repair.

Safety Precautions

Before commencing any repair work, disconnect the dryer from its power source. This is paramount. Verify the disconnection by testing the outlet with a voltage tester. Allow the dryer to cool completely if it has recently been in operation. Wear appropriate personal protective equipment (PPE), including gloves and eye protection, to guard against potential hazards.

Tools and Materials Required

Gather the necessary tools and materials beforehand to streamline the repair process. Essential items include:

• A new, compatible heating element for your specific Whirlpool Cabrio dryer model. Verify the part number before purchasing.
• A multi-screwdriver (Phillips and flathead)
• A nut driver set or socket wrench set
• A pair of pliers or wire strippers/crimpers (if wiring repairs are needed)
• A voltage tester
• Work gloves
• Safety glasses
• A vacuum cleaner or shop vac (for cleaning lint)
• A digital camera or smartphone (to document wiring connections)

Accessing the Heating Element Assembly

The heating element in a Whirlpool Cabrio dryer is typically located in the lower rear section of the appliance. Accessing it requires disassembly of several components.

Step 1: Removing the Rear Panel

First, detach the rear panel of the dryer. Locate and remove the screws securing the panel. These are generally found along the edges of the panel. Use the appropriate screwdriver or nut driver. Once the screws are removed, carefully pull the rear panel away from the dryer chassis. You may need to gently pry it loose if it is stuck.

Step 2: Locating the Heating Element Housing

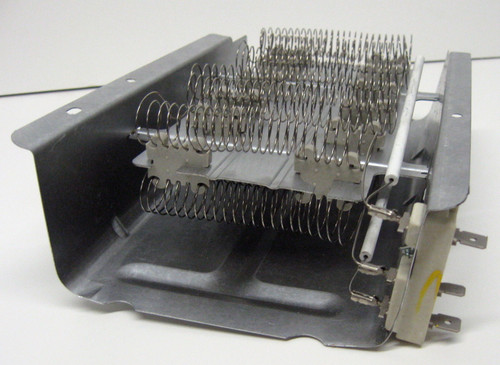

With the rear panel removed, you will see the internal components of the dryer. The heating element is housed within a metal casing, usually located at the bottom. It typically has wires connected to it and may be surrounded by other components like the thermal fuse and high-limit thermostat.

Step 3: Disconnecting the Electrical Connections

Before removing the heating element, carefully disconnect the electrical wires connected to it. Use your digital camera or smartphone to take photos of the wiring connections before disconnecting anything. This documentation is crucial for ensuring correct reassembly. Use pliers or wire strippers/crimpers if necessary to disconnect any crimped connections. Note the positions and orientations of all wires and connectors.

Pay close attention to the color-coding and terminal locations of the wires. Incorrect reassembly can lead to malfunctions or safety hazards.

Step 4: Removing the Heating Element Assembly

The heating element assembly is typically secured by screws or clips. Remove these fasteners to detach the assembly from the dryer. Gently pull the assembly away from the dryer. Be careful not to damage any surrounding components during removal.

Replacing the Heating Element

Now that the heating element assembly is removed, you can proceed with replacing the element itself.

Step 1: Removing the Old Heating Element

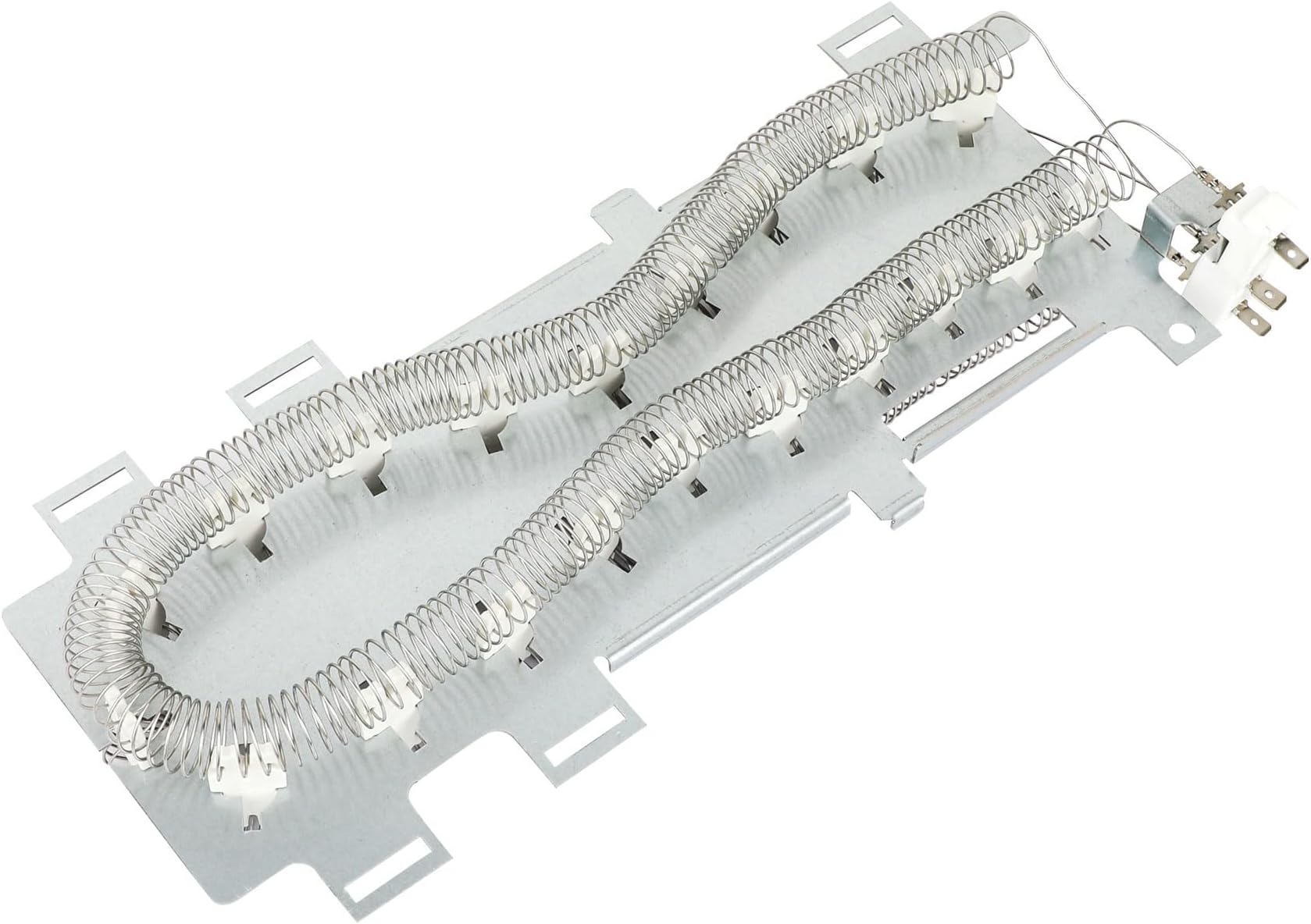

The heating element is usually secured within the metal housing by clips or screws. Remove these fasteners to release the old element. Carefully slide or lift the old element out of the housing. Note its orientation for proper installation of the new element.

Step 2: Installing the New Heating Element

Install the new heating element into the metal housing, ensuring it is oriented correctly. Secure it with the clips or screws that were removed earlier. Make sure the element is firmly seated and properly aligned within the housing.

Step 3: Inspecting and Replacing Related Components (Recommended)

It is highly recommended to inspect and, if necessary, replace related components such as the thermal fuse and high-limit thermostat while the dryer is disassembled. These components often fail concurrently with the heating element and replacing them preemptively can prevent future issues. Locate these components near the heating element housing. They are typically small, rectangular or circular devices with wires connected to them. Disconnect the wires, remove the old components, and install the new ones, ensuring correct wiring connections.

Reassembling the Dryer

After replacing the heating element and inspecting related components, reassemble the dryer in the reverse order of disassembly.

Step 1: Reinstalling the Heating Element Assembly

Carefully reinstall the heating element assembly into the dryer. Secure it with the screws or clips that were removed earlier. Ensure the assembly is properly aligned and firmly attached to the dryer chassis.

Step 2: Reconnecting the Electrical Connections

Using the photos you took earlier, reconnect the electrical wires to the heating element, thermal fuse, and high-limit thermostat. Double-check the wiring connections to ensure they are correct. Make sure all connections are secure and properly insulated.

Step 3: Reattaching the Rear Panel

Reattach the rear panel to the dryer. Align the panel with the dryer chassis and secure it with the screws that were removed earlier. Tighten the screws firmly to ensure the panel is securely in place.

Testing the Dryer

Before using the dryer, test its functionality to ensure the repair was successful.

Step 1: Powering On the Dryer

Plug the dryer back into the power outlet. Verify that the dryer powers on and the control panel lights up.

Step 2: Running a Test Cycle

Select a drying cycle and start the dryer. Monitor the dryer's performance to ensure it is heating correctly. Check for any unusual noises or smells. Observe the dryer for a complete cycle to confirm that it is functioning properly.

Step 3: Verifying Exhaust Air Temperature

After a few minutes of operation, carefully check the temperature of the air being exhausted from the dryer vent. It should be noticeably warm, indicating that the heating element is functioning. Do not directly touch the exhaust vent, as it may be hot.

Conclusion

Replacing a Whirlpool Cabrio dryer heating element involves several steps, including disassembly, component replacement, and reassembly. This guide provides a structured approach to the process. Key takeaways include:

• Safety First: Always disconnect the power supply before beginning any repair work.
• Documentation is Key: Take photos of wiring connections to ensure correct reassembly.
• Verify Compatibility: Ensure the replacement heating element is compatible with your specific dryer model.
• Inspect Related Components: Consider replacing the thermal fuse and high-limit thermostat concurrently with the heating element.
• Thorough Testing: Test the dryer thoroughly after reassembly to ensure proper functionality.

If you are uncomfortable performing this repair yourself, it is recommended to consult a qualified appliance repair technician.
