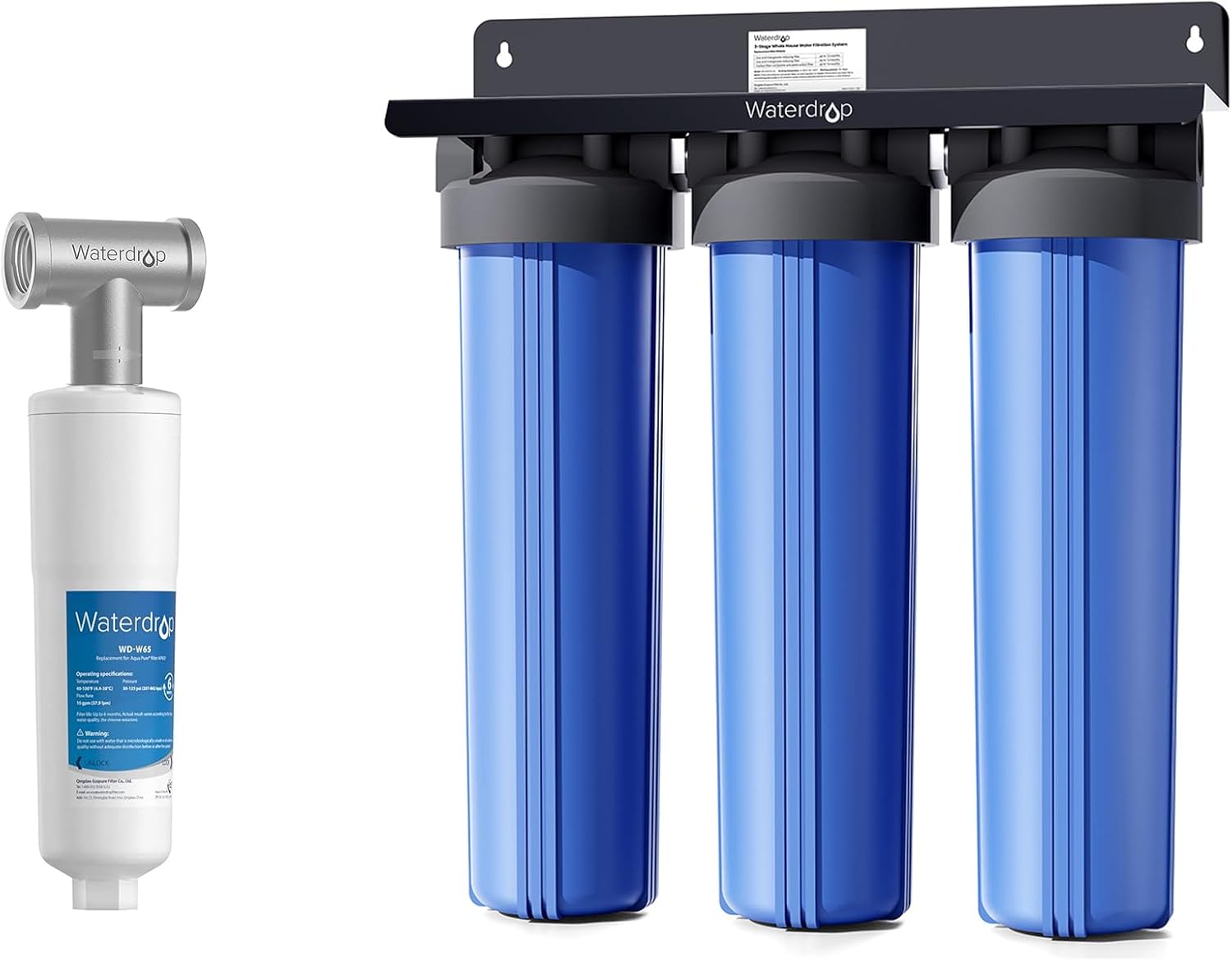

A 3-stage whole house water filter system is a point-of-entry (POE) filtration system designed to treat all the water entering a residence. It is installed on the main water line and works by passing water through a series of three filters, each targeting specific contaminants.

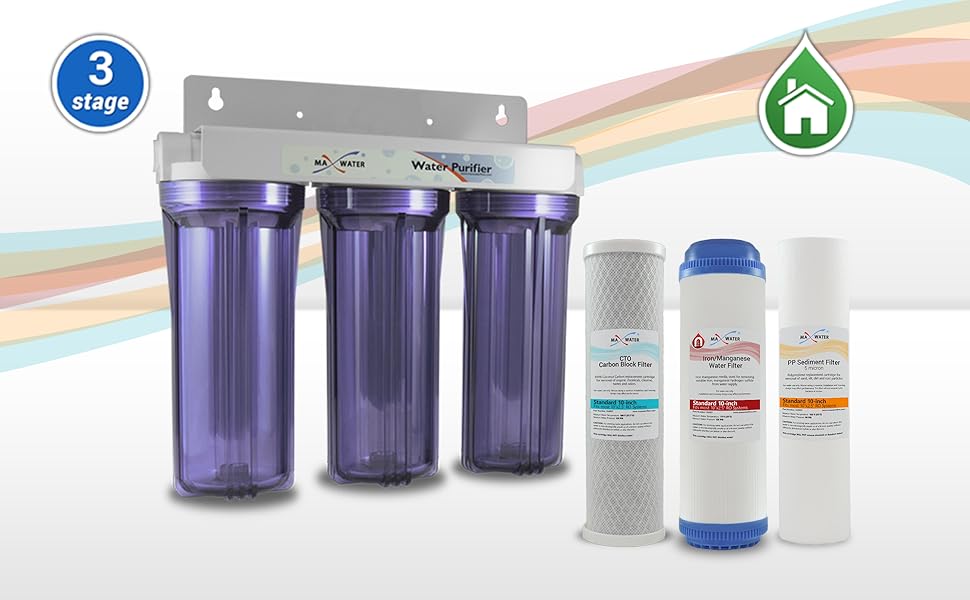

The 3 Stages of Filtration
The system’s effectiveness lies in its multi-layered approach. Each stage utilizes a different filtration mechanism to remove a broader spectrum of impurities than a single-stage filter. Understanding each stage is crucial to comprehending the overall functionality of the system.
Stage 1: Sediment Filtration
The first stage invariably involves sediment filtration. Sediment filters are designed to remove particulate matter suspended in the water. These particles can include sand, silt, rust, clay, and other debris. The filter medium is typically a spun-bonded polypropylene or pleated polyester material.
The pore size of a sediment filter is measured in microns. Lower micron ratings indicate a finer filter, capable of capturing smaller particles. A 5-micron filter, for example, will remove particles larger than 5 microns. Typical sediment filters used in the first stage range from 5 to 50 microns. Selecting the appropriate micron rating depends on the specific water quality. Well water, which often contains more sediment, may benefit from a coarser filter (e.g., 50 microns) in the first stage, followed by finer filtration in subsequent stages. City water, generally pre-treated, may only require a 5-micron filter.
Example: Imagine a glass of water with visible sand particles. The sediment filter in the first stage acts as a physical barrier, trapping these sand particles and preventing them from proceeding to the subsequent stages. This not only improves the clarity of the water but also protects downstream filters from clogging prematurely, extending their lifespan.
Stage 2: Carbon Filtration
The second stage commonly employs carbon filtration. Carbon filters utilize activated carbon, a material with a vast surface area, to adsorb contaminants. Adsorption is the process where contaminants adhere to the surface of the carbon. Carbon filters are particularly effective at removing chlorine, chloramine, volatile organic compounds (VOCs), pesticides, herbicides, and other chemicals that contribute to unpleasant tastes and odors.
There are two primary types of carbon filters: granular activated carbon (GAC) and carbon block. GAC filters consist of loose granules of activated carbon. Water flows through the granules, allowing contaminants to adsorb onto the carbon's surface. Carbon block filters, on the other hand, are made from powdered activated carbon that has been compressed into a solid block. Carbon block filters generally offer finer filtration and greater contact time, leading to improved contaminant removal compared to GAC filters. However, they also tend to have a lower flow rate.
Example: Municipal water supplies are often treated with chlorine to disinfect the water and kill harmful bacteria. While chlorine is effective at disinfection, it can also impart an undesirable taste and odor. The carbon filter in the second stage removes the chlorine, resulting in better-tasting and smelling water.
Stage 3: Specialized Filtration (Optional)
The third stage allows for customization based on specific water quality concerns. This stage can accommodate a variety of specialized filters, addressing issues not adequately covered by sediment and carbon filtration.
Some common options for the third stage include:
- Iron and Manganese Removal Filter: Targets iron and manganese, which can cause staining and metallic tastes.
- Scale Inhibitor Filter: Reduces the formation of scale buildup in pipes and appliances, protecting them from damage and improving efficiency.
- KDF Filter: KDF (Kinetic Degradation Fluxion) filters use a copper-zinc alloy to remove chlorine, heavy metals, and other contaminants through redox (oxidation-reduction) reactions. They can also inhibit the growth of bacteria and algae.
- Fluoride Removal Filter: Removes fluoride from the water.
- pH Neutralizing Filter: Corrects acidic water, preventing corrosion of pipes and fixtures.
The choice of the third-stage filter depends entirely on the specific needs of the household and the characteristics of the water supply. A water quality test is highly recommended to determine the appropriate filter for this stage.
Example: If a home experiences frequent scale buildup in appliances, a scale inhibitor filter in the third stage can significantly reduce this problem. Alternatively, if the water source is known to have elevated levels of iron, an iron removal filter would be a more appropriate choice.

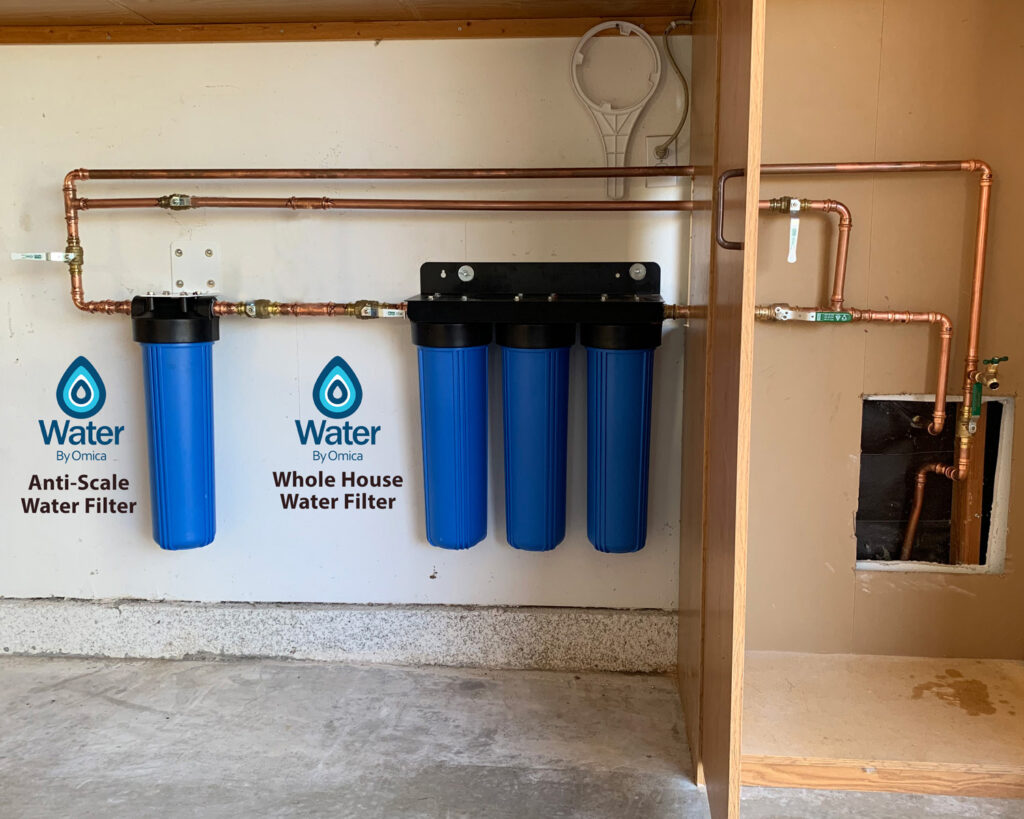

Installation and Maintenance
Installing a 3-stage whole house water filter system typically requires basic plumbing skills. It involves cutting into the main water line, installing the filter housing, and connecting the plumbing. Many systems come with detailed installation instructions. Professional installation is recommended if you are not comfortable working with plumbing.
Maintenance primarily involves replacing the filter cartridges periodically. The frequency of replacement depends on the water quality and the amount of water used. Sediment filters typically need to be replaced every 3-6 months, while carbon filters may last 6-12 months. The manufacturer's recommendations should always be followed. Regularly replacing the filters ensures optimal performance and prevents the system from becoming a breeding ground for bacteria.
It is also important to sanitize the filter housings periodically, typically during filter changes. This can be done by flushing the housings with a diluted bleach solution.
Benefits of a 3-Stage System
A 3-stage whole house water filter system provides numerous benefits, including:
- Improved Water Quality: Removes a wide range of contaminants, resulting in cleaner, clearer, and better-tasting water.
- Protection of Plumbing and Appliances: Reduces sediment and scale buildup, extending the lifespan of pipes, water heaters, and other appliances.
- Cost Savings: Eliminates the need for bottled water and reduces the expense of repairing or replacing damaged appliances.
- Enhanced Skin and Hair: Removes chlorine and other harsh chemicals that can dry out skin and hair.
- Peace of Mind: Provides assurance of having clean and safe water throughout the entire home.
Practical Advice
Before purchasing a 3-stage whole house water filter system, it is strongly advised to have your water tested. This will identify any specific contaminants present and guide you in selecting the appropriate filters for each stage. Consider the flow rate of the system, ensuring it is adequate for your household's water usage. A low flow rate can result in reduced water pressure, especially when multiple fixtures are in use simultaneously.
When replacing filters, always use filters that are certified by independent organizations like NSF International. NSF certification ensures that the filters meet rigorous performance standards and are safe for use with potable water. Keep a log of filter replacement dates to ensure timely maintenance. Failing to replace filters on schedule can compromise water quality and damage the system.
Proper maintenance is crucial for maximizing the lifespan and effectiveness of your 3-stage whole house water filter system. By understanding the function of each stage, following the manufacturer's recommendations, and regularly monitoring water quality, you can ensure that your system provides clean, safe, and great-tasting water for years to come.
