Understanding Class A Ground Fault Circuit Interrupters (GFCIs)

Ground Fault Circuit Interrupters (GFCIs) are essential safety devices designed to protect individuals from potentially fatal electrical shocks. Among the various types of GFCIs, the Class A GFCI holds a prominent position due to its widespread use and effectiveness in residential, commercial, and industrial settings. This article provides a concise overview of Class A GFCIs, focusing on their function, reliability, and key characteristics.

The Primary Function of a GFCI

The core purpose of a GFCI is to detect ground faults. A ground fault occurs when electricity flows through an unintended path to ground. This can happen when a person comes into contact with a live wire and a grounded object simultaneously, creating a dangerous path for the current to flow through their body. GFCIs are designed to interrupt the circuit very quickly when a ground fault is detected, preventing serious injury or electrocution.

GFCIs operate on the principle of monitoring the current flowing through the hot and neutral conductors in a circuit. Under normal operating conditions, the current flowing through these conductors should be equal. If a difference in current is detected, it indicates that current is leaking to ground somewhere in the circuit. This difference, even a small amount, triggers the GFCI to trip.

Class A GFCI Sensitivity and Tripping Threshold

Class A GFCIs are defined by a specific tripping threshold. They are designed to trip when a ground fault current of 6 milliamperes (mA) or more is detected. The National Electrical Code (NEC) mandates this tripping threshold for Class A GFCIs to ensure adequate protection against electrical shock hazards. The trip time is critical; the GFCI must interrupt the circuit very quickly, typically within milliseconds, to minimize the duration of the shock. The NEC also specifies that a Class A GFCI must trip within a timeframe dependent on the ground fault current, faster at higher currents and slower, but always within a defined limit, at currents near the 6mA threshold.

The 6mA threshold is a compromise between providing effective protection and minimizing nuisance tripping. Lowering the threshold further could lead to more frequent false trips due to minor leakage currents, while raising the threshold would reduce the level of protection offered. This balance is crucial for the reliable operation of GFCIs in real-world applications.

Reliability and Testing of Class A GFCIs

The reliability of Class A GFCIs is paramount. These devices are designed for long-term operation and are subjected to rigorous testing to ensure they meet industry standards and perform as expected. Testing includes functional tests to verify the tripping mechanism, endurance tests to assess long-term stability, and environmental tests to evaluate performance under various conditions. The Underwriters Laboratories (UL) is a prominent organization that certifies GFCIs, ensuring they meet stringent safety and performance requirements. UL 943 is the standard specifically for GFCIs.

Regular testing of GFCIs is crucial to ensure their continued functionality. GFCIs typically have a "test" button that simulates a ground fault condition. Pressing this button should cause the GFCI to trip, indicating that the tripping mechanism is working correctly. The NEC recommends testing GFCIs at least monthly. While this monthly test confirms the basic tripping function, it doesn’t fully validate the GFCI's sensitivity and ability to trip at the required 6mA threshold. Professional testing equipment can be used to perform more comprehensive testing, particularly in commercial and industrial settings.

Applications of Class A GFCIs

Class A GFCIs are widely used in areas where there is a higher risk of electrical shock, particularly in wet or damp locations. The NEC mandates GFCI protection in numerous locations, including:

Bathrooms
Kitchens (countertop receptacles)
Outdoors
Garages
Basements
Laundry areas
Swimming pool areas
Construction sites

The specific requirements for GFCI protection can vary depending on the application and local electrical codes. It is essential to consult the NEC and local regulations to ensure compliance.

Installation Considerations

Proper installation is critical for the effective operation of Class A GFCIs. GFCIs must be installed by qualified electricians who understand electrical codes and safety practices. The wiring must be connected correctly, ensuring the line and load terminals are properly identified. Incorrect wiring can prevent the GFCI from functioning correctly or even damage the device.

The GFCI must be installed in a location that is readily accessible for testing and maintenance. While tamper-resistant receptacles are often required, care must be taken to avoid obstructing the GFCI's test and reset buttons. Regular inspection of the GFCI and its surrounding area is recommended to identify any potential hazards or damage.

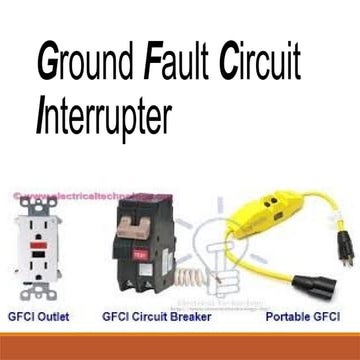

Different Types of GFCIs: Receptacle, Circuit Breaker, and Portable

Class A GFCIs are available in various forms to suit different applications:

Receptacle GFCIs: These are the most common type and are installed in place of standard electrical receptacles. They provide GFCI protection at the point of use.
Circuit Breaker GFCIs: These are installed in the electrical panel and provide GFCI protection for an entire branch circuit.

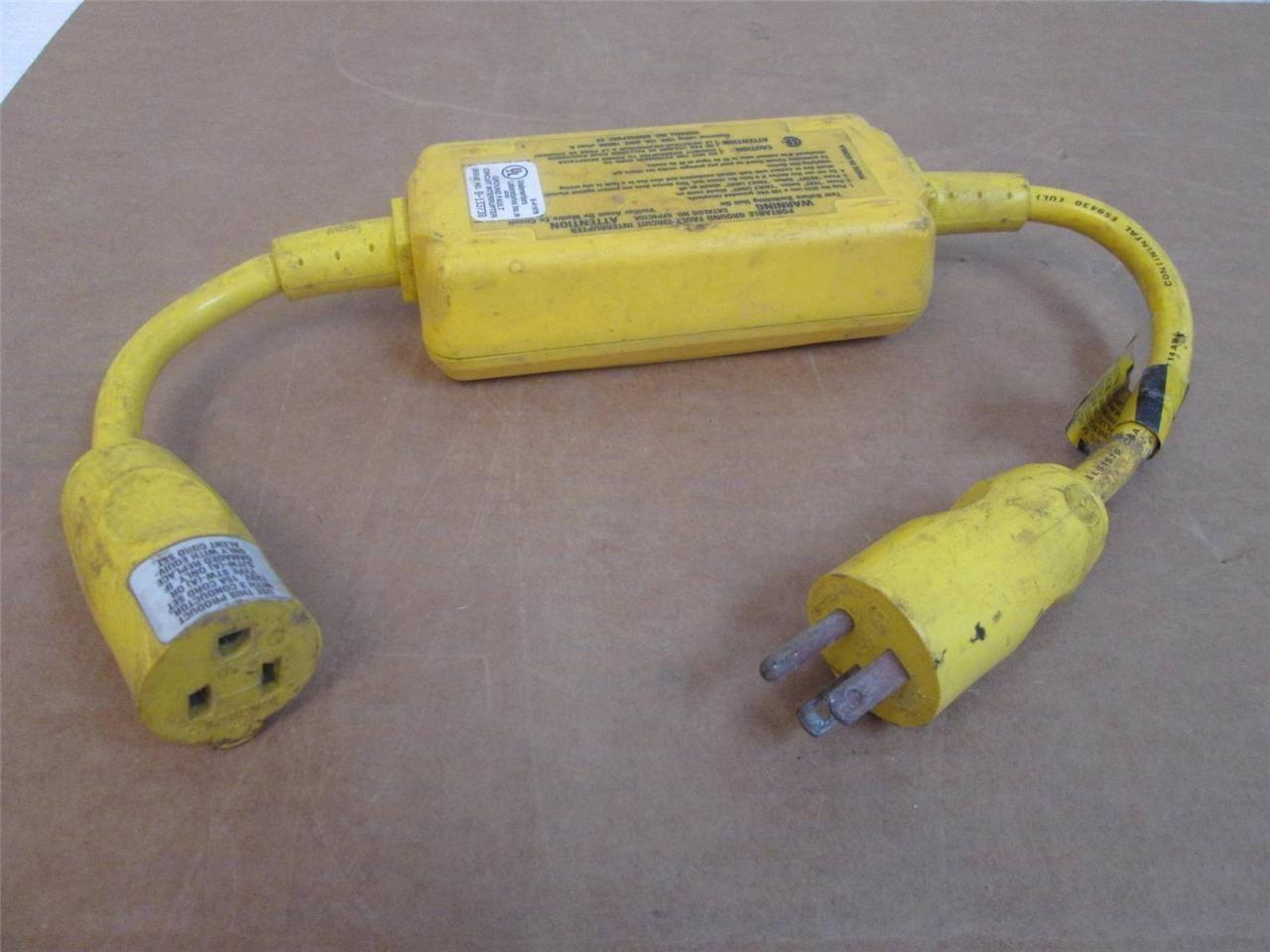

Portable GFCIs: These are self-contained units with a plug and one or more receptacles. They are useful for temporary applications, such as construction sites or outdoor events.

The choice of GFCI type depends on the specific requirements of the application. Receptacle GFCIs are suitable for individual outlets, while circuit breaker GFCIs offer broader protection for an entire circuit. Portable GFCIs provide flexibility and convenience in temporary settings.

Troubleshooting GFCI Tripping

Nuisance tripping of GFCIs can be a common problem. This occurs when the GFCI trips even though there is no apparent ground fault. Common causes of nuisance tripping include:

Moisture: Damp conditions can create leakage paths that trigger the GFCI.
Faulty appliances: Appliances with damaged cords or internal faults can leak current to ground.
Wiring issues: Loose connections or damaged wiring can cause intermittent ground faults.
Shared neutral circuits: In older wiring systems, shared neutral circuits can cause GFCIs to trip when multiple appliances are used simultaneously.

To troubleshoot GFCI tripping, systematically disconnect appliances on the circuit to identify the source of the problem. Inspect wiring for damage and ensure all connections are tight. If the problem persists, consult a qualified electrician to diagnose and repair the issue.

Beyond Class A: Other GFCI Classes

While Class A GFCIs are the most prevalent, other classes of GFCIs exist, each with different tripping thresholds and applications. These include Class B, C, D, E, and F GFCIs. These other classes are not typically used for personnel protection, but rather for equipment protection, and have different trip thresholds. Their applications are far more specialized than the ubiquitous Class A.

It's crucial to remember that these different classes of GFCIs are not interchangeable and are designed for distinct purposes. Using the wrong type of GFCI can compromise safety and equipment performance.

Key Takeaways Regarding Class A GFCIs

Class A GFCIs are critical safety devices designed to protect against electrical shock hazards. Their 6mA tripping threshold ensures rapid interruption of ground faults, minimizing the risk of injury or electrocution. Regular testing and proper installation are essential for maintaining the reliability of GFCIs. While nuisance tripping can occur, systematic troubleshooting can often identify and resolve the issue. Always consult a qualified electrician for any electrical work or troubleshooting.

Key points to remember:

Class A GFCIs trip at 6mA.
Regularly test GFCIs using the test button.
Ensure proper installation by a qualified electrician.
GFCI protection is required in many locations by the NEC.
Troubleshoot nuisance tripping by systematically isolating the source.

By understanding the function, reliability, and applications of Class A GFCIs, individuals and organizations can effectively protect themselves from electrical hazards and ensure a safe electrical environment.
